ThermoMate ES800 8-Gallon Mini-Tank Water Heater: 8-gallon tank

What it delivers

The ThermoMate ES800 8-Gallon Mini-Tank Water Heater is a mini-tank heater holding 8 gallons, rated at 1.44 kW on 120 volts.

A mini tank delivers its stored gallons at full flow, then recovers; it is the quick fix for a sink that waits a minute for hot water.

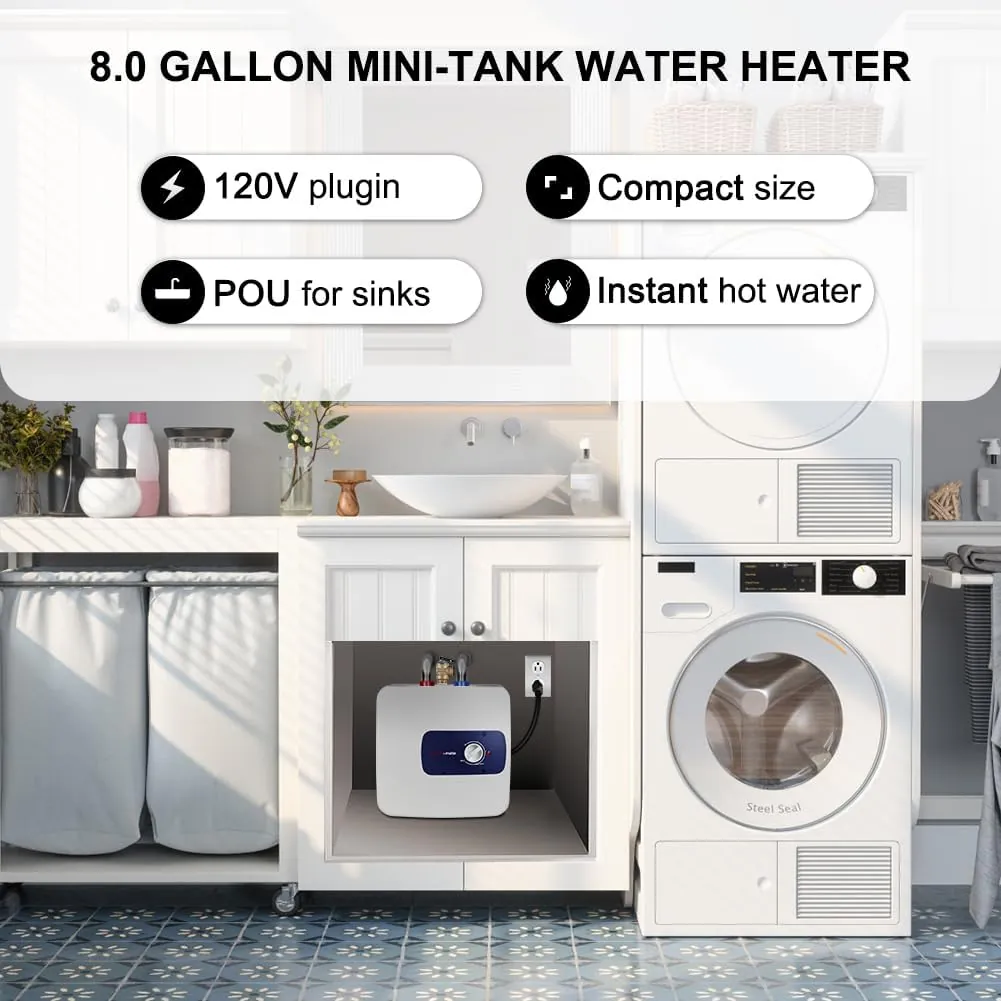

At 120 volts it plugs into or wires to an ordinary household circuit, which is why mini tanks are a common retrofit.

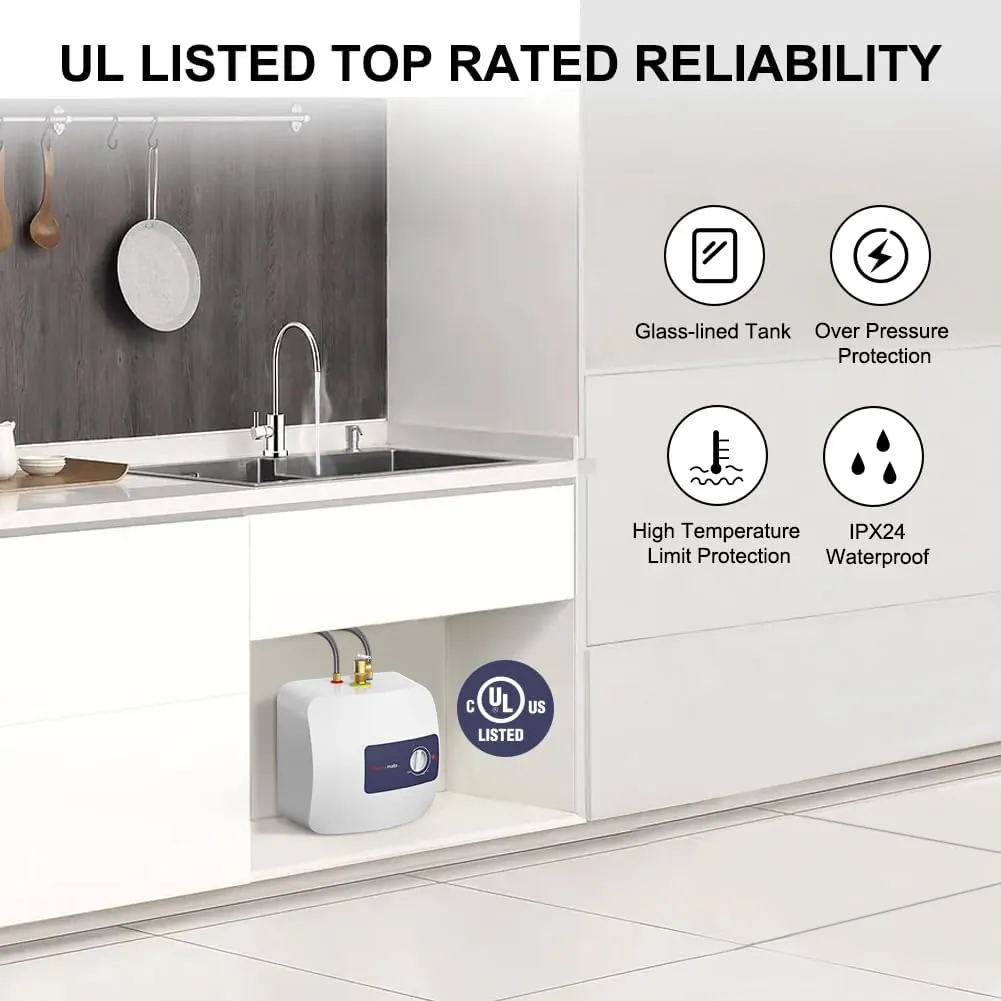

Listed details: features: Corrosion resistant tank, Plugin to 120V outlet to use, UL Listed; connections: 1/2" npt; material: Porcelain Enamel, Stainless Steel; model: ES800.

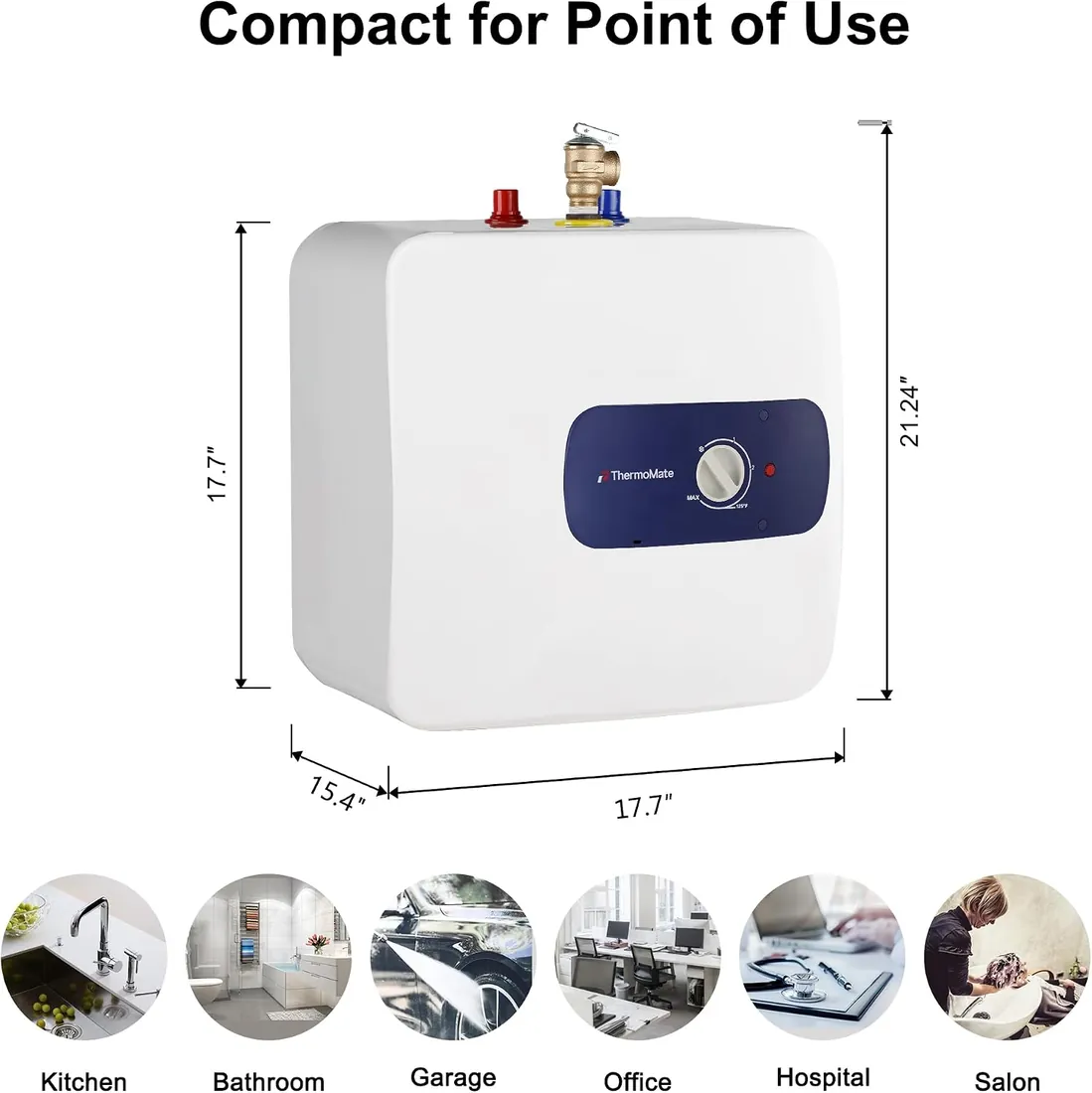

The listing gives dimensions of 17.7 in (W) x 17.7 in (H) and a weight of 27 lb.

Right unit for this house?

Install it when

One sink far from the main heater
Wet bars, garages and offices

Look at another unit when

Showers or whole-house use
Long continuous draws

Strengths and trade-offs

Strengths

8-gallon tank
120 V
Hot water at the tap in seconds

Trade-offs

Runs out after its stored gallons
Tank takes cabinet space

Install limits

Figures are the maker's or seller's own. Flow at a rise is our estimate from the input; gas, venting and electrical work needs a licensed professional.

Rated performance

Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.

Model number	ES800	Retailer
Tank	8 gal	Retailer
Dimensions (seller)	17.7"W x 17.7"H	Retailer
Features (seller)	Corrosion resistant tank, Plugin to 120V outlet to use, UL Listed	Retailer
Power	1.44 kW	Retailer
Voltage	120 V	Retailer
Product weight	27 lb	Retailer
Material	Porcelain Enamel, Stainless Steel	Retailer
Connections	1/2" npt	Retailer
