What it delivers
The Camplux TE04N 3.5 kW Point-of-Use Tankless Water Heater is a point-of-use electric tankless rated at 3.5 kW on 120 volts. Its listing gives a maximum flow of 2.5 GPM.
Worked out from its input, it delivers roughly 0.5 GPM when the water only has to rise 45°F, and 0.3 GPM at a 70°F winter rise: less than one 2 GPM shower in summer, less than one 2 GPM shower in winter. Size it to your fixtures.
At 120 volts 3.5 kW is about 29 amps. The maker calls for 32A Circuit Breaker. A licensed electrician confirms the panel, the service and the wire before it goes in.

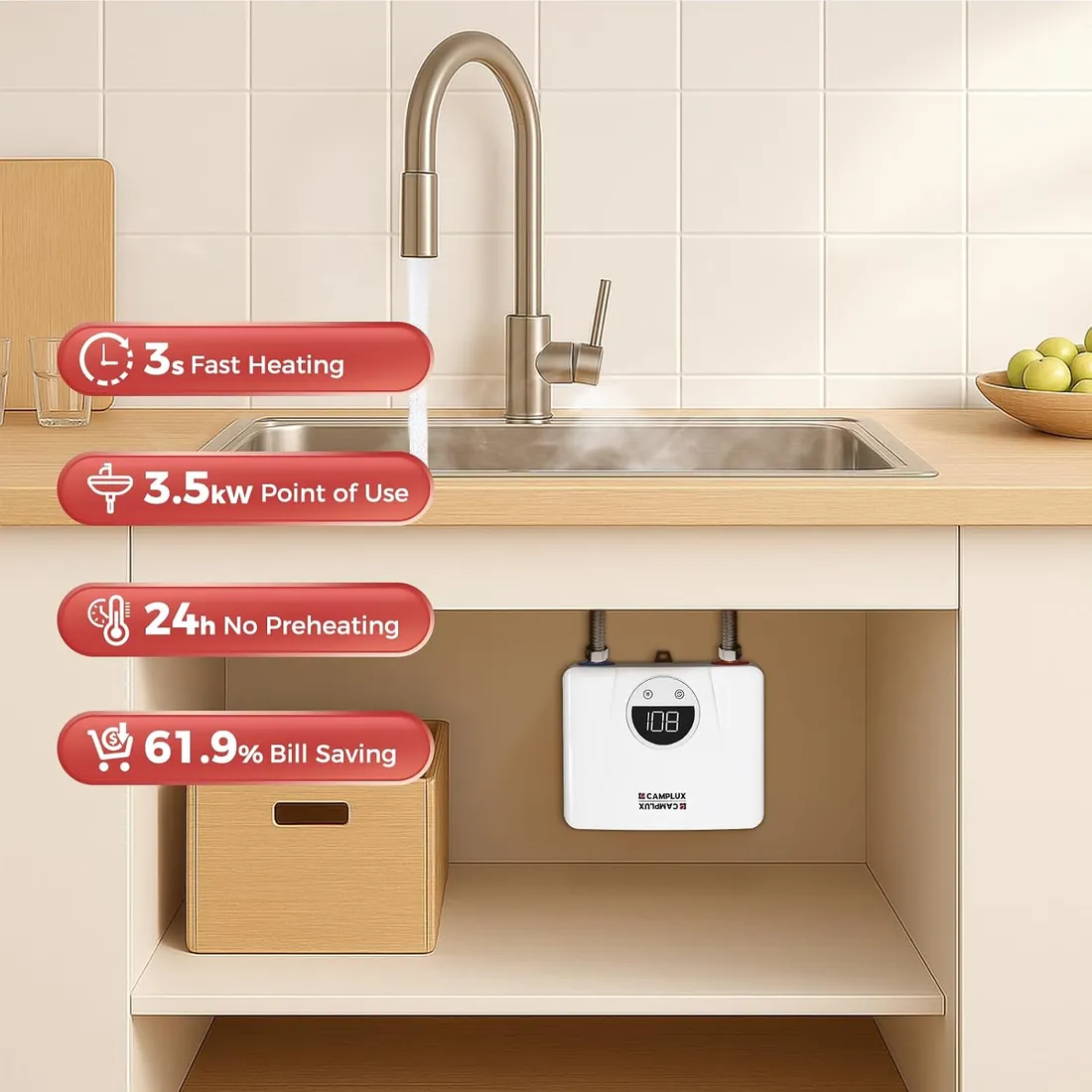

Point-of-use units go under or beside one sink, where a short pipe run means hot water in seconds.
Other listed details: connections: 1/2"npt; material: Aluminum, Stainless Steel; model: TE04N.
The listing gives dimensions of 7 in (W) x 6 in (H) and a weight of 3 lb.
Right unit for this house?
Install it when
- One sink or a low-flow shower
- A far bathroom with a long wait for hot water
Look at another unit when
- Whole-house hot water
- Kitchen sinks at full flow in cold climates
Strengths and trade-offs
Strengths
- 3.5 kW
- Up to 2.5 GPM
- No venting or gas line
- Breakers stated by the maker
Trade-offs
- Weak at a large winter rise
Install limits
- Figures are the maker's or seller's own. Flow at a rise is our estimate from the input; gas, venting and electrical work needs a licensed professional.
Rated performance
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | TE04N | Retailer |
|---|---|---|
| Tank | 0.66 gal | Retailer |
| Dimensions (seller) | 7"W x 6"H | Retailer |
| Power | 3500 kW | Retailer |
| Voltage | 120 V | Retailer |
| Max flow (maker) | 2.5 liters per minute | Retailer |
| Product weight | 3 lb | Retailer |
| Material | Aluminum, Stainless Steel | Retailer |
| Breakers (maker) | 32A Circuit Breaker | Retailer |
| Connections | 1/2"npt | Retailer |
Rival units at this flow
More point-of-use water heaters rated for similar demand
- Camplux TE05 4.5 kW Point-of-Use Tankless Water Heater
- Stiebel Eltron Mini 3.5-1 3.5 kW Point-of-Use Tankless Water Heater
- Camplux TE06ProN2 6 kW Point-of-Use Tankless Water Heater
- Camplux TE06ProN5 6 kW Point-of-Use Tankless Water Heater
Full point-of-use water heaters spec grid · Every Camplux unit in the catalog
Final verdict
A sensible point-of-use electric tankless for one sink or a low-flow shower.
